Simpson Strong Tie PDPAS Powder-Driven Collated Pin

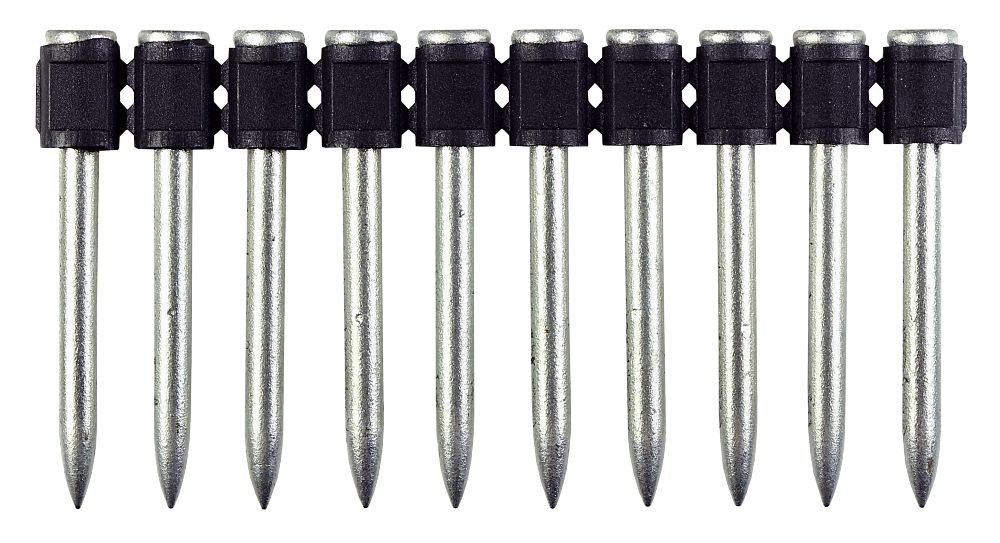

The PDPAS is a 10-pin collation of hardened-steel PDPA pins designed to fasten building components to concrete, steel and CMU. The PDPAS consists of a strip of hardened-steel pins that have 0.300"-diameter heads and 0.157"-diameter shanks. The PDPAS eliminates the need for reloading and provides maximum jobsite productivity with fast installation.

Key Features

• The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• Designed for use with many low-velocity magazine tools
