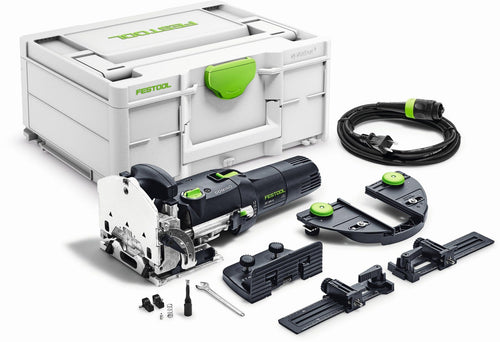

Festool Domino Joiner DF 500 Q-Set

Contains
8 Article

DF 500 Q Joiner

DOMINO Cutter
D 5-NL 20 HW-DF 500

Support Bracket
ZA-DF 500/700

Trim Stop
LA-DF 500/700

Cross Stop
QA-DF 500/700

open ended spanner, WAF 8

plug it-Power Cord
SJO 18 AWG-4

Systainer³
SYS3 M 187

Product details

Functions
Precision. Stability. Versatility. The Power Behind Every Joint.
Where precision meets power. Built to hold. Every wood joint has its strengths—and the DOMINO system brings them all together. The DOMINO joiner, paired with DOMINO Tenons, delivers strong, twist-proof connections with speed and accuracy. Clean, Precise Cuts: The pendulum cutting motion carves out elongated mortises that lock in tight and stay aligned. Stronger Joints: DOMINO Tenons combine the strength of mortise-and-tenon with the flexibility of biscuits—perfect for both fine furniture and heavy-duty builds. Built for Any Job: Whether you're working indoors or out, on delicate trim or thick panels, DOMINO gives you the stability and versatility you need. From the first cut to final assembly, DOMINO helps you connect with confidence.

• Precise: The unique pendulum milling action delivers smooth, accurate mortises with minimal effort.

• Quick & Easy: Built-in indexing pins make repeat tenon placement fast and foolproof.

• Stable: The oval-shaped DOMINO Tenon creates twist-proof, rock-solid joints that hold tight.

• Versatile: Tenons range from 4 x 20 mm to 10 x 50 mm and come in beech or weatherproof sipo—ready for indoor or outdoor builds.

• Dialed In: Routing depths are preset to match tenon sizes and panel thickness—no guesswork needed.

• Flexible: DOMINO connectors and fittings let you build strong furniture that can be taken apart when needed.

• System Ready: Every accessory is designed to work seamlessly with the full DOMINO lineup.

Specification
Power consumption: 420 watts
Cutter Spindle Speed: 24,300 RPM
Mortising Depth Stop: 15/32", 19/32" 25/32", 31/32", 1 3/32" (12, 15, 20, 25, 28 mm)
Domino Slot Cutter Dia: 3/16", 15/64", 5/16", 25/64" (5, 6, 8, 10 mm)
Mortising Height: 3/16"1 3/16" (5-30 mm)
Weight: 7 lbs. (3.2 kg)
